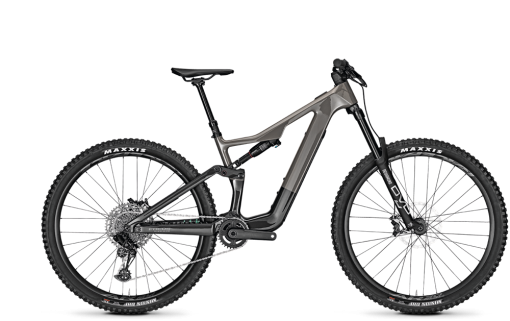

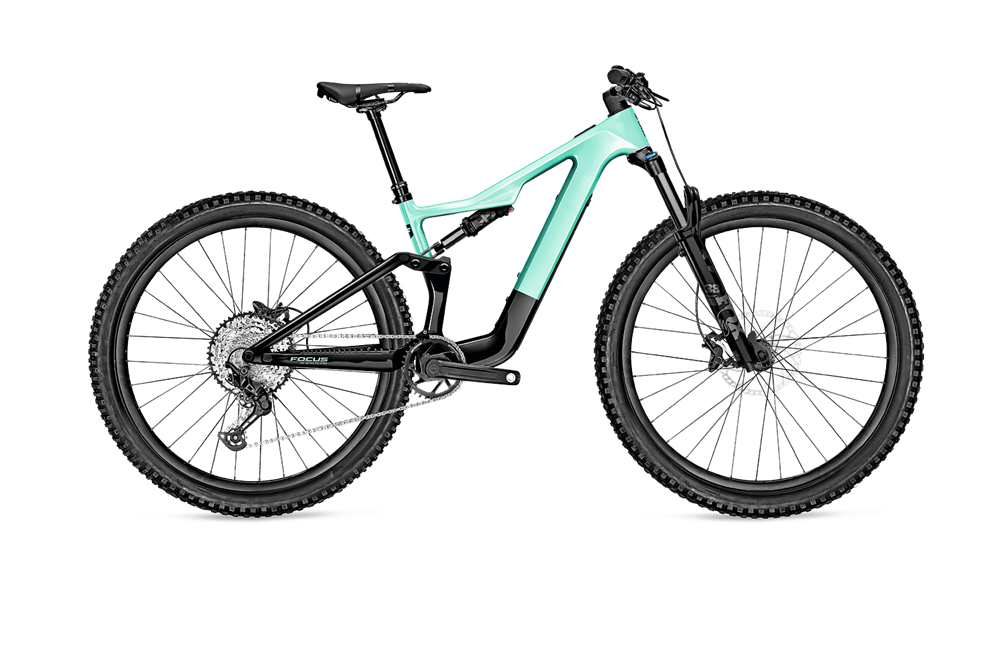

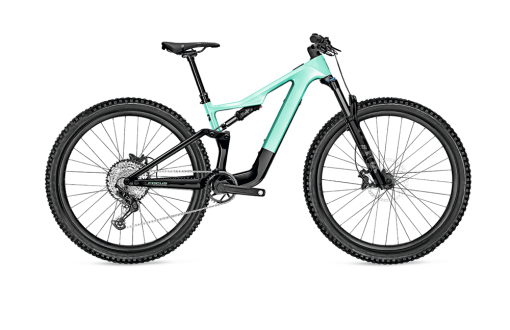

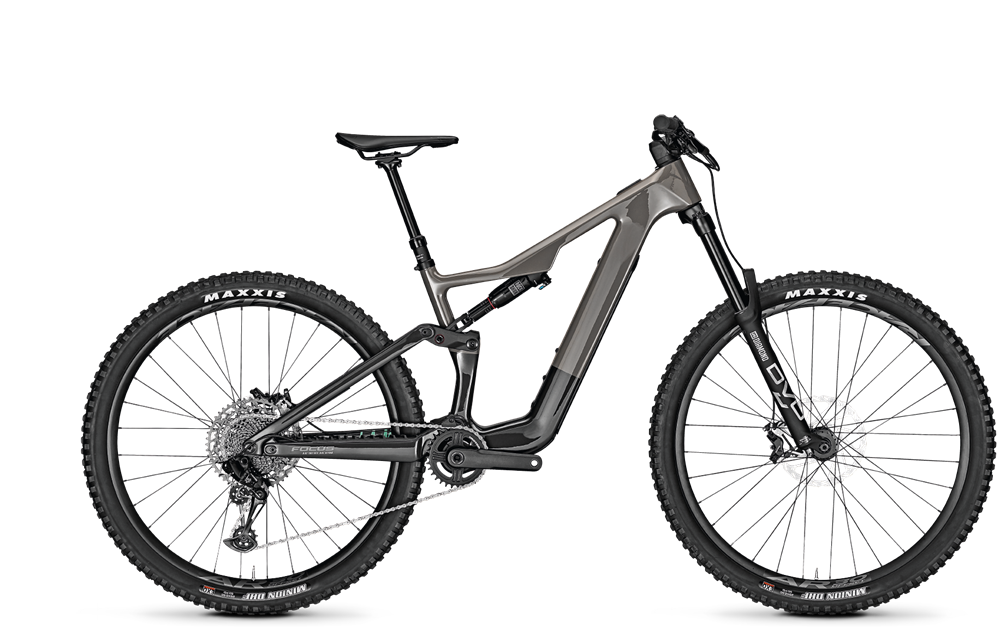

FOCUS JAM2 SL 8.7 2023 430WH

Light e-mountain bike thanks to a lightweight carbon frame and the Fazua Ride 60 e-drive with 60 Nm and 430 Wh battery

160 mm travel DVO Diamond e-bike suspension fork and 150 mm RockShox Deluxe Select+ rear shock with F.O.L.D. kinematics

Fully integrated C.I.S. cable routing with trail-ready SRAM NX Eagle 1×12 shifting

Carbon frame with Fazua Ride 60 e-drive & 430 Wh battery

160 mm DVO Diamond fork & 150 mm RockShox Deluxe Select+ shock

SRAM NX Eagle 1×12

• Brake
  • 200
• Pedal
  • MTB, with reflector
• Frame size
  • S,M,L,XL
  • 39,42,44,46
• Drive train
  • Chain
• Max total weight
  • 135 kg
• Frame
  • Carbon technology frame, 150mm F.O.L.D. GEN3 kinematics, 148×12 thru axle, internal cable routing, Post Mount 180 mm
• Fork
  • DVO Diamond E3, 110×15 mm, 44 mm rake
• Handlebar
  • Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
• Saddle
  • fi’zi:k Taiga
• Seat post
  • Post Moderne dropper post PM-MT171, 31.6 mm
• Stem
  • FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
• Brakes
  • SRAM GUIDE T
• Crank set
  • Samox EC40 ISIS
• Sprocket
  • SRAM NX Eagle, 12-speed
• Transmission
  • front: 32, rear: 11-50
• Wheel rims
  • RaceFace AR30 Offset
• Brake lever
  • SRAM GUIDE T
• Battery
  • 430
• Color
  • Poolgreen / Carbon glossy
  • Warmgrey / Carbon glossy
• Travel
  • 160 mm
  • 150 mm
• Hub
  • Novatec D041, 15×110 mm thru axle,Novatec D041, 15×110 mm
  • Novatec D462, 12×148 mm
• Grip
  • FOCUS Locker SL
• Rear derailleur
  • SRAM NX Eagle, 12-speed
• Tire
  • Maxxis Minion DHF, EXO, 63-622
• Bottom bracket
  • Integrated in Drive Unit
• Shift/brake lever
  • SRAM GUIDE T
  • SRAM SX Eagle, 12-speed
• Spoke
  • Niro, black
• Chain
  • SRAM SX Eagle, 12-speed
